Self-Ballasting Heavy Deck Barges

Managing high-spec, self-ballasting heavy lift deck barges for charter to the Offshore Industry

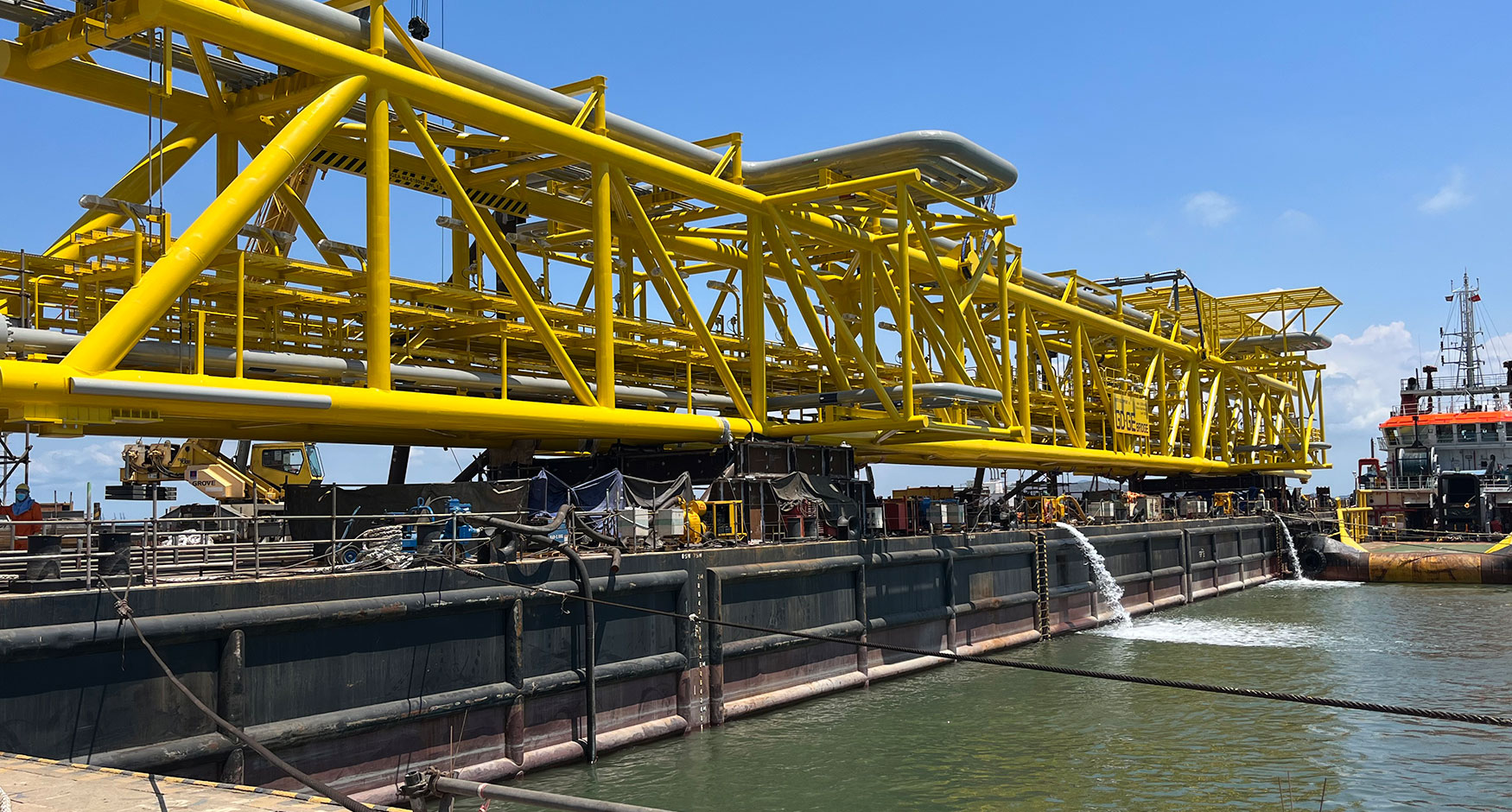

Seabridge Marine proudly manages two 20,000 DWT, 400′ x 120′ x 25′ self-ballasting heavy lift deck barges for HDB2014 Pte Ltd. which are available for charter.

Built by our newbuilding division to the highest specifications, these barges are meticulously maintained to ensure exceptional performance and reliability. Both barges are ABS class certified and upgraded in 2025 with ballast water treatment systems to make them D2 compliant. This upgrade ensures full adherence to international ballast water management regulations, enabling them to handle diverse and demanding transport requirements worldwide.

Constructed with enhanced structural strength, these barges are designed to withstand higher stress loads and can be safely grounded for loading and offloading operations when necessary. This added flexibility makes them ideal for a wide range of heavy lift and complex cargo tasks.

Currently operating in the Southeast Asia and Middle East regions, these barges exemplify Seabridge Marine’s commitment to innovation, quality, and operational excellence in the marine industry. Whether for transporting oversized equipment, offshore modules, other heavy cargos or marine construction support, we ensure every asset under our management is ready to meet the toughest challenges.

Please contact us for charter availability.

Engineered for Strength, Designed for Efficiency

HDB Series Heavy Deck Barges

Discover our range of high-spec, ABS-classed self-ballasting barges, expertly designed to tackle the most demanding heavy-lift transport challenges.

Technical Details

Heavy-lift specifications for transport.

GENERAL SPECIFICATIONS

HDB Series Ballastable Heavy Deck Cargo Barge

Flag Registry
Singapore
Certification:
ABS + A1, Deck Cargo Barge Ballastable
Overall Dimensions
Length: 400’ (122m) Breadth: 120’ (36.5m) Depth: 25’ (7.6m) Loaded Draft: 19’ (5.8m) Light Draft: 3.6’ (1.1m)
Weight & Capacity
Deadweight: 22,045ST (20,000MT) Lightship: 4,691ST (4,256MT) Deck Area: 41,650ft² (3,864m²) Deck Unit Load: 5,000lbs/ft² (25 tonnes/m²) TC Tonnage: 9,211GT (2,763NT)
Bulkheads
(4) longitudinal, (8) transverse + pump room, longitudinal access/pipe alley
Double Bottom in Pump Room
32 Ballast Tanks
Ballast System
2 x 2500 cu.m./hr diesel-driven ballast pumps
Ballast Water Treatment System
D2 compliant
